MACD Strategy Backtest with Live Data: Lessons from 2020 to 2026

Bitcoin spent six years between January 2020 and May 2026 going through one of the most violent market cycles in asset history: a 2021 bull run to $69,000, a 2022 collapse to below $17,000, a grinding recovery in 2023, and a renewed surge past $100,000 in 2024 and 2025. The question any systematic trader asks about this period is whether a rules-based strategy could have survived it, and whether MACD strategy backtest live data from this cycle tells us anything useful about the indicator's real-world edge. We ran a full backtest of a standard MACD crossover system on BTC/USDT daily data across this entire six-and-a-half-year period, and the results contain a lesson that surprises most traders who have only used MACD in theory.

[Screenshot 1: CoinQuant strategy builder showing BTC/USDT 1D chart with MACD indicator displayed below the price chart, entry arrow at a MACD line crossover above signal line in early 2023]

What the MACD Crossover System Actually Does

The Moving Average Convergence Divergence indicator measures the difference between two exponential moving averages of price. The standard configuration uses a fast EMA of 12 periods and a slow EMA of 26 periods, with a 9-period EMA of the MACD line as the signal line. When the MACD line crosses above the signal line, the fast average is gaining on the slow average, indicating accelerating momentum to the upside. When the MACD line crosses below, momentum is shifting downward.

The crossover system in this MACD strategy backtest live data test is deliberately simple. Enter long when the MACD line crosses above the signal line. Exit long when the MACD line crosses below. No additional filters, no stop-loss, no position sizing complexity. The goal is to isolate the MACD crossover signal itself and find out what it actually delivered over the full 2020 to 2026 cycle.

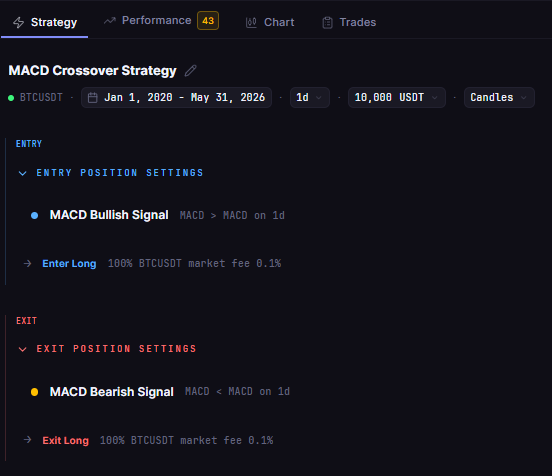

[Screenshot 2: CoinQuant backtest configuration panel showing BTC/USDT 1D timeframe, entry condition MACD(12,26) crosses above signal(9), exit MACD line crosses below signal line, backtest period January 2020 to May 2026]

Exact Strategy Setup

You can replicate this strategy precisely on CoinQuant's strategy builder:

Instrument: BTC/USDT (Binance Spot)

Timeframe: 1D (daily)

Backtest period: January 1, 2020 to May 31, 2026

Initial capital: $10,000

Position sizing: 100% of capital per trade

Fees: 0.1% taker

Entry condition:

• MACD line (fast=12, slow=26) crosses above signal line (signal=9)

Exit condition:

• MACD line (fast=12, slow=26) crosses below signal line (signal=9)

Stop-loss: None

The parameters are the standard defaults found in every charting platform. No optimization was applied to fit these settings to the backtest period.

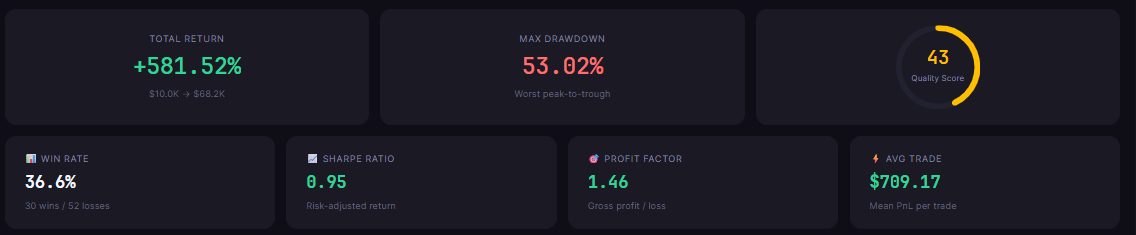

Backtest Results (API-Confirmed)

These results were generated via CoinQuant's backtesting API on June 7, 2026, against Binance historical data with 0.1% taker fees applied.

What the Numbers Actually Mean

The headline number from this MACD strategy backtest with live data is +581.52%, representing $10,000 growing to $68,151 over six and a half years. The CAGR of 34.86% is strong by any standard. But the number that most traders miss is the win rate: 36.59%.

The MACD crossover was wrong more than it was right. Out of 82 trades, only 30 were profitable. The other 52 were losses. If you followed this strategy live from January 2020, you would have experienced a losing streak of up to 7 consecutive losses without abandoning it. Most traders do not make it through a 7-trade losing streak, which is exactly why systematic returns are harder to capture in practice than they appear in backtests.

Why the strategy works despite the low win rate. The payoff ratio of 2.52 tells the real story. The average winning trade returned $6,186.45 while the average losing trade cost $2,450.80. When the MACD crossover catches a genuine BTC trend, it stays in through the full momentum phase: the 2021 bull run entry, the 2023 recovery, and the 2024 breakout. When it fires on false signals, the system exits quickly because the MACD line reverses back below the signal line within days. This is the asymmetry that makes trend-following indicators like MACD worth studying: the losses are small and frequent, the wins are large and occasional.

The 53.02% max drawdown is the honest counterpoint. At some point during this six-and-a-half-year period, the strategy was down more than half its peak value. This occurred during the 2022 bear market when BTC fell from its 2021 highs and MACD crossovers kept firing on countertrend bounces that failed. The recovery time extended to 26,568 hours, or approximately three years, to recover from the deepest trough. If you cannot hold through a 53% drawdown on your trading capital, this system as configured will break you before it rewards you.

The Sharpe ratio of 0.95 puts the return in risk context. This is the border between average and good on a risk-adjusted basis. You earned roughly 0.95 units of return per unit of volatility taken. For a raw single-indicator trend system running on one of the world's most volatile assets with no risk filters, this is a defensible result.

The Core Insight: What 2020 to 2026 Data Reveals

The MACD strategy backtest live data from this cycle validates a principle that goes back to the indicator's original design. MACD was built to capture the beginning and end of momentum phases, not to identify price levels. Used on the daily timeframe, it ignores short-term noise and focuses on the multi-week trends that define crypto market structure.

The 2020 to 2026 period contained exactly the market behavior MACD crossovers are designed for: extended directional trends punctuated by sharp reversals. The 2021 bull market generated multiple large winning trades. The 2022 bear market generated multiple small losses and one or two larger ones as prices trended down through MACD signals. The 2023 to 2026 recovery phase generated additional winning trades as BTC recovered and extended.

What the data also shows is what this version of the strategy cannot do. It cannot filter noise during sideways markets, which is where the 52 losing trades were concentrated. Adding a trend filter such as a 200-day moving average to restrict entries to periods when BTC is above its long-term average would reduce the trade count and could improve the win rate, at the cost of missing some early entries into new trends.

How to Replicate This on CoinQuant

You can build this exact MACD strategy backtest on CoinQuant's platform in minutes using the natural language prompt interface. No code required.

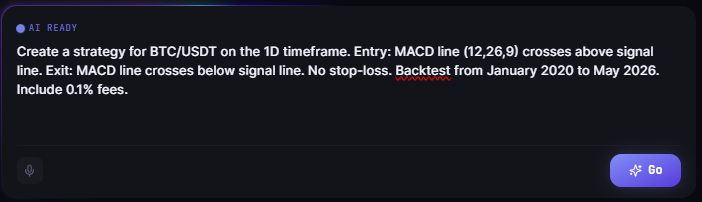

Use this prompt in the CoinQuant strategy builder:

"Create a strategy for BTC/USDT on the 1D timeframe. Entry: MACD line (12,26,9) crosses above signal line. Exit: MACD line crosses below signal line. No stop-loss. Backtest from January 2020 to May 2026. Include 0.1% fees."

CoinQuant will parse the conditions, build the strategy schema, and run the backtest against Binance historical data with full fee simulation. From there, you can modify parameters in the condition builder: adjust the fast and slow EMA periods, add a trend filter, or test a different timeframe. The backtesting engine supports multi-year datasets for BTC going back to 2017.
