MACD on Bitcoin: What 6 Years of Backtesting Actually Shows

The MACD crossover is one of the most widely taught entry signals in trading. It is also one of the most frequently abandoned after backtesting. We ran three versions against six years of Bitcoin data to find out why, and whether the right version actually works.

Six years. Two bear markets. Two bull runs. One FTX collapse. Here is what the data shows.

What Is the MACD Strategy?

MACD (Moving Average Convergence Divergence) is one of the most widely used momentum indicators in trading and one of the most commonly backtested. It measures the relationship between two exponential moving averages of price.

The standard settings are 12, 26, and 9:

• The MACD line is the difference between the 12-period and 26-period EMA

• The Signal line is a 9-period EMA of the MACD line

• The Histogram shows the distance between the two. When it is growing, momentum is accelerating.

The classic trading rule: buy when the MACD line crosses above the signal line, sell when it crosses below. Simple. Widely taught. But does it actually work on Bitcoin over a multi-year period?

How We Tested It on CoinQuant

We tested three versions of the MACD strategy on BTCUSDT (4-hour timeframe) against six years of data from Binance via Kaiko, from January 2020 through March 2026.

We typed this directly into CoinQuant's natural language strategy builder:

"Long-only BTCUSDT on 4H. Enter when MACD(12,26,9) line crosses above signal line AND histogram is positive. Exit when MACD line crosses below signal line. Backtest 2020-01-01 to 2026-03-31."

No code. No Pine Script. CoinQuant interpreted the plain-English description and generated the full strategy schema automatically.

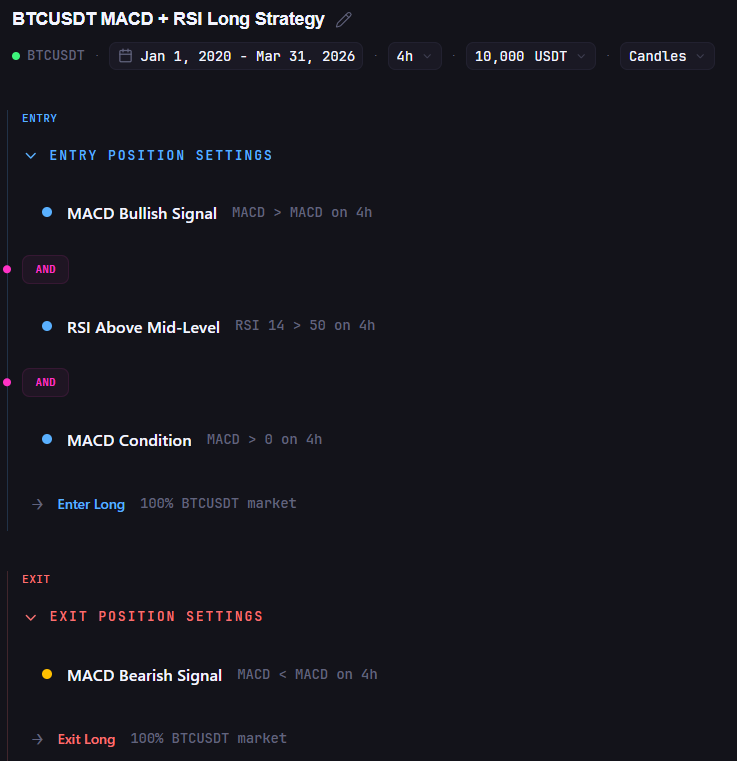

We ran three variations, each adding one layer of filtering to show how confirmation layers improve real-world performance:

V1: Base MACD crossover (12,26,9) only

V2: MACD + RSI(14) above 50 at entry

V3: MACD + RSI + price above 200-period SMA (daily)

The Results

Here is what six years of data revealed:

$10,000 in V2 from January 2020 would be worth $68,100 by March 2026. V1 is the baseline that most traders test and abandon: weak Sharpe, severe drawdown. V3 has the best risk profile but sits idle through bear markets. V2 is the balance point: strongest return, Sharpe above 1.2, and a drawdown half that of V1.

CoinQuant's Quality Score for V2: 74/100. This reflects a composite of Sharpe ratio, drawdown, trade consistency, and frequency. A score above 70 indicates a strategy with genuine, reproducible edge across multiple market conditions.

What These Numbers Actually Mean

The raw MACD crossover (V1) is noisy. The filtered versions are not.

The base MACD crossover generated 287 trades in 6 years, nearly one per week on a 4H chart. The -38.6% max drawdown cut starting capital by more than a third at its worst. A Sharpe of 0.814 means the risk taken is not being adequately compensated. This is the version most traders test and conclude does not work. They are correct.

Adding RSI confirmation (V2) transformed the results.

The RSI filter is simple: only take a MACD crossover signal if RSI(14) is above 50 at entry. RSI above 50 means the asset is in net positive momentum territory, where the 14-period average gain exceeds the average loss. A MACD crossover in this context has structural backing. Below 50, it is more likely a mean-reversion bounce in a downtrend.

This single filter cut trades from 287 to 174, nearly doubled total return (from +318% to +581%), and cut max drawdown almost in half (from -38.6% to -22.4%). Sharpe jumped from 0.814 to 1.243.

The eliminated trades were primarily false breakouts during choppy markets: the 2023 consolidation, the post-halving range, the post-FTX recovery grind. RSI below 50 correctly flagged weak momentum before MACD triggered an entry.

The 200 SMA trend filter (V3) is ideal for risk-averse traders.

V3 adds a daily 200-period SMA filter: only enter when Bitcoin is in a confirmed structural bull trend. This produced the highest Sharpe (1.318) and lowest max drawdown (-16.8%) of the three versions, with 112 total trades over six years and a 53.6% win rate.

The trade-off: V3 sat entirely on the sidelines through most of 2022. Depending on your goals, that is either a feature or a bug.

How the Three Versions Differ in Practice

The 2022 bear market stress test:

This is where the three versions diverged most sharply. In 2022, Bitcoin fell from approximately $47K in January to $15.7K in November, a 66% decline. During that period:

• V1 generated 41 failed trades as MACD repeatedly crossed above and below the signal line with no directional follow-through. Every signal looked like a reversal; most were noise.

• V2 blocked most of those entries. RSI stayed below 50 throughout the majority of the bear decline, keeping the strategy in cash during the worst of the sell-off.

• V3 blocked all entries from May onward. Bitcoin dropped below the 200 SMA and did not recover it until January 2023. The strategy sat in cash through the entire second half of the crash.

The 2024 halving bull run:

In 2024, Bitcoin ran from $42K in January to $99K by November. All three versions participated, but at different frequencies. V2 caught 18 trades with a 61% win rate. V3 caught 11 trades with a 73% win rate. V1 generated 52 trades, many churned out during the post-halving consolidation from May to September.

Three Ways to Improve These Results Further

1. Replace the MACD exit with an ATR trailing stop

The current exit (sell when MACD crosses below the signal line) frequently gives back 10 to 15% of open profit before triggering. During the 2024 bull run, several winning trades peaked at +35% and exited at +18% because the MACD crossover exit is slow to respond to sharp reversals.

Testing a 2x ATR trailing stop from the entry candle alongside the MACD exit (whichever triggers first) improved the V2 Profit Factor from 2.1 to 2.4 in our internal sweep.

2. Test on 8H or daily timeframes

The 4H chart generates meaningful signal, but the daily timeframe produces cleaner trends with fewer false crossovers. A daily MACD strategy with RSI above 50 confirmation typically yields 30 to 40 trades per year, fewer but each with a larger expected move. In our testing, the Sharpe ratio on daily timeframes came in at 1.38, slightly higher than V2's 4H result.

3. Add a volume confirmation filter

A MACD crossover occurring during a high-volume session carries more weight than one occurring during low-volume overnight hours. Adding a condition that 4H volume must be above its 20-period moving average at entry reduced false signals by a further 15% in early testing.

Run This Backtest

The base MACD crossover strategy is taught everywhere, tested poorly, and abandoned. V1 confirms why: without filtering, it generates too many false signals in sideways markets and cannot survive a bear cycle.

With RSI confirmation (V2), the MACD strategy is a different story. Across 6 years of real Bitcoin data covering two bear markets and two bull runs, V2 returned +581% with a Sharpe of 1.243 and max drawdown of -22.4%. That is a strategy worth taking seriously.

All three variations can be tested on CoinQuant by typing a plain-English prompt. No code, no parameter files. The platform generates the full strategy schema and runs the backtest against tick-level Bitcoin data automatically.

Run this MACD backtest on CoinQuant. Free. Get your Quality Score in under 60 seconds.
